Axitom
- Cutting capacity is 125 x 290 mm (5.0 x 11.5 ")
- The fully automatic large quantities of cutting machine
- Cutting wheel size 350 or 400 mm / 14.0 or 16.0 "diameter
- Powerful motor and using a monitor to ensure the normal operation of the high time
- Wide cutting chamber is suitable for irregular large workpiece
- Can use working gloves operation, suitable for harsh environment and industrial production
- Automatic continuous cutting, can shorten the clamping, cutting and operation time
- Advanced cutting mode, to ensure that every time the best cutting
If you visit some of the world's largest automobile material phase workshop, are likely to encounter Axitom fully automatic cutting machine.One reason is that Axitom conforms to the automotive industry in terms of size, complicated shape workpiece and continuous cutting specific requirements.With large cutting room, automatic cutting machine and X, Y, Z three to mobile, can be positioning, clamping and cutting complex large irregular artifacts.Axitom has two kinds of models and various versions, this page will introduce a fully functional types.At the bottom of the below on this page provides an overview of all versions.
Powerful motor, automated process and use of monitoring, no longer affects normal running time.
Powerful motor to cooperate Axitom, overload protection function and intelligent OptiFeed feed control function can prevent motor overload.Valuable information about the schedule monitoring and AxioWash automatic cleaning function to ensure the normal running of Axitom automatic cutting machine to achieve the longest time, and prolong its service life.
Irregular large artifacts?Don't worry about it.You have enough space for additional clamping.
Axitom cutting machine size is 591 x 492 mm (23.3 x 19.4 "), in addition is also equipped with two automatic cutting machine, the scope of its activity in the x direction can increase to 100 mm (4.0 "), in the Y direction can increase to 150 mm (5.9 ").This enables Axitom to positioning, clamping and cutting very large irregular artifacts.In addition, the cutting wheel at the bottom of the spacious space can holding up to 200 mm (8.0 ") of the workpiece.
Especially suitable for harsh environment - can use gloves operation completely.
With only two control device, three axis joystick and multi-function knob can control all functions, highly user friendly on operation.Joystick is very stable, specially designed for all kinds of production environment and industrial production.And it can move on three different axis, cutting machine can control the cutting wheel and X and Y cutting machine.Multi-function knob is used to set all cutting parameters, can even use durable working gloves.
To support in the production workshop is convenient for cutting hard material, and the main functions of the large workpiece
-
Continuous cutting and long workpiece cutting used for the automatic cutting machine X and Y cutting machine
Provide automatic cutting machine, X open infinite possibility.Equipped with automatic cutting machine X Axitom cutting machine a total of four kinds of Multi - Cut mode, support continuous cutting without repositioning.Automatic cutting machine can use AxioCut Y cutting pattern processing deep artifacts and large sample.
Continuous cutting and long workpiece cutting used for the automatic cutting machine X and Y cutting machine
-
To deal with hard material and can decrease the cost of cutting wheel ExciCut
ExciCut mode using the motion of the cutting wheel to reduce the contact area and artifacts, to minimize the risk of heat damage.In this way, can be better for cutting very hard materials, and extend the service life of cutting wheel.
To deal with hard material and can decrease the cost of cutting wheel ExciCut
-
For fast cutting large workpiece AxioCut steps
AxioCut steps via mobile automatic cutting machine and cutting wheel Y to enhance cutting ability.This cutting machine can be moved to 150 mm (5.9 "), it can cut the sample size will be equal.Can handle this means Axitom - 5/400 of the size up to 125 x 290 mm / 4.9 x 11.4 ", Axitom - 5 can handle the size up to 110 x 245 mm / 4.3 x 9.6 ".Cutting wheel to move up and down along the samples, so that we can minimize contact area, to avoid overheating and thermal damage.
For fast cutting large workpiece AxioCut steps
-
AxioWash automatic cleaning procedures - keep the best state of the machine
Maintenance and cleaning is the most time-consuming process in cutting process, but Axitom cutting machine does not exist the problem.AxioWash is the patent of Struers cleaning procedure, automatic cleaning machine, just clean after cutting the level of the interior.It's as simple as that!The machine can be used in the work now.Use AxioWash every day, don't need any effort.
AxioWash automatic cleaning procedures - keep the best state of the machine
-
Avoid motor overload OptiFeed intelligent feed control
Struers development OptiFeed intelligent control function is that the purpose of feeding needs in different cutting feed speed when the properties of the different material, to eliminate the damage risk of the workpiece, cutting wheel, or motor.With the help of OptiFeed, Axitom sustainable measure the load of cutting arm.Default feed speed and cutting force is a maximum, when the machine detected strength exceeds the strength of the preset limit, the machine will automatically reduce the feed speed, in order to protect the workpiece, cutting wheel, and equipment.Speed can be adjusted automatically, so that the strength limit is as close as possible.So can constantly optimize the feed rate, at the same time does not affect the cutting quality and excellent efficiency cutting wheel, and finish cutting as soon as possible.
Avoid motor overload OptiFeed intelligent feed control
-
When set store cut sequence, save valuable time
Storage repeated workpiece cutting sequence, save setup time, make sure that your sample is particularly suitable for the preparation of the next step in the process.Four different continuous cutting patterns to choose from, completely according to your demand for continuous cutting.
When set store cut sequence, save valuable time
-
Used to quickly and easily locate three-axis joystick and multi-function knob
Intuitive user interface combined with easy-to-use multi-function knob and joysticks three axis orientation, let the machine can quickly set up, and ensure the accurate Settings of cutting sequence.
Used to quickly and easily locate three-axis joystick and multi-function knob
-
Optional 350/400 mm cutting wheel
According to your exact needs, select Axitom cutting machine type and the correct cutting wheel size.According to the size of the workpiece, choose Axitom model and cutting wheel size, provide the correct processing capabilities for your application.About the different Axitom type, please refer to this at the bottom of the page content.
Optional 350/400 mm cutting wheel
-
Suitable for almost all samples of 12 mm t-slot clamping tool!
There are all sorts of general 12 mm t-slot clamping tool to choose from.Using Struers fast clamping device or vertical clamping device, easy in different geometric shapes.Have all kinds of support tools can choose, suitable advanced geometry.To understand all the options, please refer to the Axitom brochures.
Suitable for almost all samples of 12 mm t-slot clamping tool!
-
AutoStop lets you realize the machine unattended
To set the Axitom, make its in the record to automatically stop when workpiece is cut off.This will ensure that cutting is always full, so as to save time.
AutoStop lets you realize the machine unattended
The facts
model
There are two kinds of Axitom models.
Axitom
Axitom - 5
If you want to use 350 mm / 14.0 "cutting wheel cutting size less than 110 x 245 mm / 4.3 x 9.6" artifacts, Axitom - 5 is especially suitable for.
5/400 Axitom -
If you want to use 400 mm / 16.0 "cutting wheel cutting size less than 125 x 290 mm / 4.9 x 11.4" artifacts, especially suitable for Axitom - 5/400.
If you want to use 350 mm / 14.0 "cutting wheel cutting size less than 110 x 245 mm / 4.3 x 9.6" artifacts, Axitom - 5 is especially suitable for.
5/400 Axitom -
If you want to use 400 mm / 16.0 "cutting wheel cutting size less than 125 x 290 mm / 4.9 x 11.4" artifacts, especially suitable for Axitom - 5/400.
Struers equipment comply with the provisions of the applicable international standards instruction and affiliate.Struers products research and development to upgrade.Therefore, we reserve the right to improve product, without prior notice.

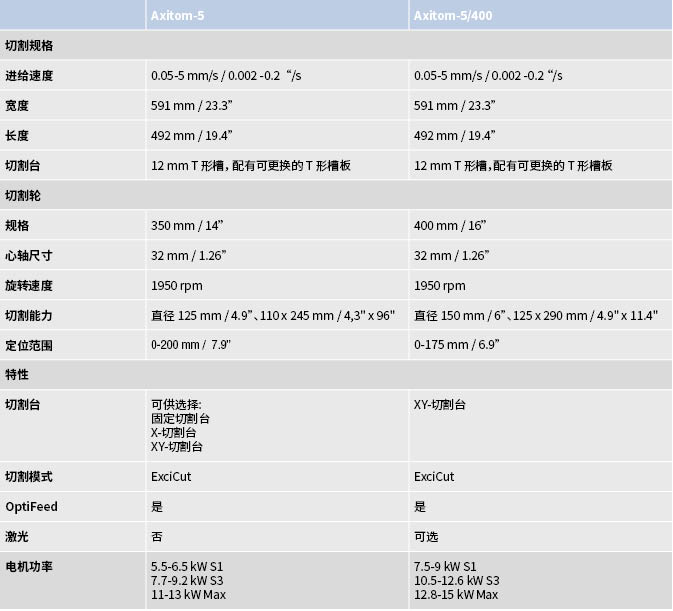

Technical data
Axitom - 5 technical data sheet
Struers technical data table is designed to help users choose the best equipment, satisfies the requirement of specific purposes.Data table contains the capacity and performance standards, size, weight, electrical data and noise standard, the surrounding environment and safety information.In most cases, users can also get accessories overview information, further improve the capacity and performance.
Download the technical data sheet
For Axitom brochure
For the complete introduction, descriptive diagram and main function introduction, help you determine the choice of equipment.
• explanatory diagrams
, the main function is introduced
• technical data sheet
Cutting consumables
-
Grinding cutting wheel
Very hard black metal (< 500 HV < 1400).
Enter the online mall Contact the sales -
Grinding cutting wheel
Very hard black metal (< 400 HV < 800).
Enter the online mall Contact the sales -
Grinding cutting wheel
Hard black metal (< 275 HV < 750).
Enter the online mall Contact the sales -
Grinding cutting wheel
Medium hardness of ferrous metals (< 200 HV < 550).
Enter the online mall Contact the sales -
Grinding cutting wheel
Medium softness black metal (< 100 HV < 500).
Enter the online mall Contact the sales -
Grinding cutting wheel
Soft black metal (< 75 HV < 375).
Enter the online mall Contact the sales -
Diamond cutting wheel
Suitable for HV hardness material of 500-2400.
Enter the online mall Contact the sales -
CBN cutting wheel
Suitable for HV hardness material of 500-2400.
Enter the online mall Contact the sales -
Used to cut the additives
Used for circulation, cooling and cleaning.
Enter the online mall Contact the sales -
+
-
-
